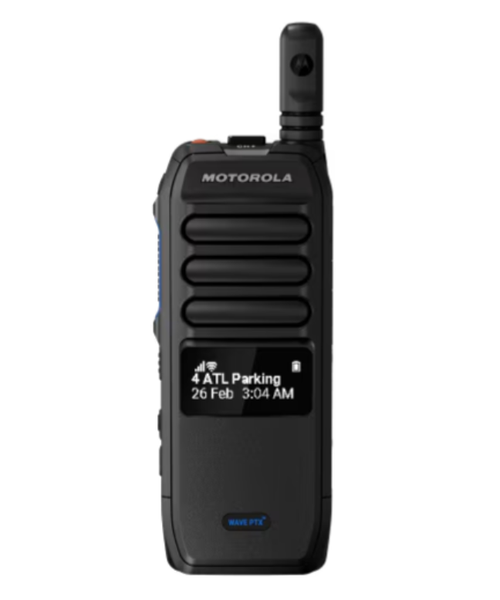

Motorola TLK 200 WAVE PTX Two-Way Radio - HK2229A

Motorola TLK 200 WAVE PTX Two-Way Radio

Keep your team connected across facilities, job sites and the workday. The Motorola TLK 200 combines familiar push-to-talk operation with broadband connectivity through WAVE PTX. With multi-carrier LTE support, dual-band Wi-Fi, clear audio and a rugged IP67 design, it helps teams coordinate wherever supported network coverage is available.

Subscription required: You may purchase this radio with or without a subscription. An active Motorola Solutions WAVE PTX subscription is required to operate it, even if you choose radio only. Selecting “Radio only — no subscription” does not include service or remove this requirement. SafeGuard features require the appropriate WAVE PTX SafeGuard subscription. Contact Delmarva Communications for service options and activation details.

Built to Keep Your Business Moving

• Multi-carrier connectivity: Selects the strongest available supported cellular network at startup and scans for another available network if the connection is lost.
• Dual-band Wi-Fi: Supports compatible 2.4 GHz and 5 GHz networks for communication in connected facilities.
• Clearer conversations: Background noise suppression and an integrated wideband speaker help teams hear instructions in busy environments.
• Voice messaging and call fallback: Send recorded updates to individuals or groups, and use call fallback to leave a voice message when a recipient is unavailable.
• Up to 18 hours of battery life: A 2500 mAh lithium-ion battery supports extended operation. Rated at a 5:5:90 duty cycle; actual runtime varies with use and conditions.
• Rugged construction: IP67 dust and water protection, antimicrobial housing and MIL-STD-810 testing support demanding daily use.
• Easy-to-read display: A 2.5-line monochrome screen presents essential information in a compact handheld design.
• Bluetooth connectivity: Pair compatible wireless audio accessories using Bluetooth 5.0 LE.
• Centralized management: Provision devices, configure talkgroups and deploy software updates remotely through the WAVE PTX Administration Portal.

WAVE PTX Service Options — Billed Separately

• WAVE PTX Base — $19 per month: Base WAVE PTX service plan, billed separately through WAVE.
• WAVE PTX SafeGuard — $23 per month: Service plan with the SafeGuard features described below, billed separately through WAVE.
• Radio only — no subscription: Purchase hardware without a service plan. An active WAVE PTX subscription must be arranged separately before the radio can be used.

Subscription fees are billed separately through WAVE and are not included in your checkout total. The service selector records your plan preference only; selecting a plan does not activate service. Your store purchase covers the radio and any optional charger selected. An active WAVE PTX subscription must be in place before the radio can be used.

SafeGuard Safety and Roaming Features

With the appropriate WAVE PTX SafeGuard subscription, the TLK 200 supports Emergency Calling and Alerting, Lone Worker, Fall Alert and Location-Based Talkgroups. A dedicated emergency button provides quick access to configured emergency functions.

SafeGuard also enables North American roaming in the United States, Canada and Mexico. Coverage and roaming limits apply. Room-level and multi-floor indoor location capabilities require a separate Location Tech integration.

Connect Your Existing Workforce

Through a properly configured WAVE PTX solution, the TLK 200 can communicate with compatible TLK devices, WAVE PTX Mobile users on smartphones and tablets, and WAVE PTX Dispatch. Supported MOTOTRBO systems include Capacity Max, Capacity Plus and IP Site Connect. MOTOTRBO interoperability requires appropriate system integration and service configuration; this is not direct conventional VHF/UHF radio communication.

Technical Specifications

• Model: Motorola TLK 200
• U.S. ordering part number: HK2229A
• Platform: WAVE PTX broadband push-to-talk
• LTE bands: FDD B2, B4, B5, B7, B12, B13, B17 and B66
• Channel capacity: 96 channels
• Contact capacity: 1,000 contacts
• Battery: PMNN4578, 2500 mAh lithium-ion
• Battery runtime: Up to 18 hours at a 5:5:90 duty cycle
• Charging port: USB Type-C
• Wi-Fi: 802.11 a/b/g/n/ac; 2.4 GHz and 5 GHz; up to 5 SSIDs
• Wi-Fi security: WPA2/WPA3 Personal and Enterprise
• Bluetooth: 5.0 LE
• Location support: GPS, GLONASS, Galileo, BeiDou and A-GNSS
• Encryption: AES-256
• Audio connector: 2.5 mm with mechanical lock
• Display: 2.5-line monochrome
• Sensor: Accelerometer
• Ingress protection: IP67
• Intrinsically safe: No
• Dimensions without antenna (H × W × D): 139 × 55 × 24 mm
• Dimensions with antenna (H × W × D): 176.4 × 55 × 24 mm
• Weight with battery: 192.6 g / 6.79 oz
• Operating temperature with battery: -10°C to +60°C
• Standard product warranty: 3 years, subject to Motorola Solutions warranty terms

What's Included

• Motorola TLK 200 radio
• LTE stubby antenna
• 2500 mAh lithium-ion battery
• Battery door cover
• Swivel carry holster
• USB-C to USB-A charging cable

USB wall charger: Add the optional US/Canada USB wall charger for $4, or choose no wall charger at no additional charge. The USB-C to USB-A cable is included as standard. WAVE PTX service is required separately.

Compatible Accessories

Manufacturer-listed options include the PMNN4578 battery, PMLN8569 six-pocket charger, PMLN7159 D-style earpiece, PMLN8740 EP910E Bluetooth earpiece, PMMN4125 RM250 wired remote speaker microphone and PMMN4127 WM500 wireless remote speaker microphone. Accessories are sold separately unless explicitly included in your selected package.

Need help selecting service or equipping a team? Contact Delmarva Communications for assistance with WAVE PTX subscriptions, activation and compatible accessories.
