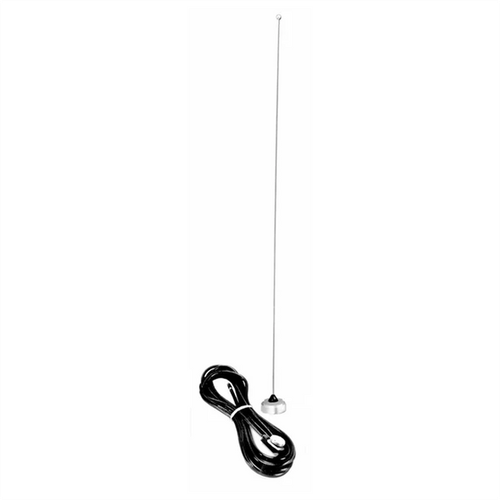

403–430 MHz Quarter-Wave UHF Mobile Antenna Kit

Equip a compatible Motorola UHF mobile radio with dependable omnidirectional coverage using the Motorola HAE4002A Quarter-Wave Antenna Kit.

Designed for the 403–430 MHz range, this genuine Motorola roof-mount antenna provides balanced radio-frequency performance for commercial, government and industrial communication systems.

Its permanent through-hole mount, low-loss coaxial cable and Mini-UHF connector provide a complete professional antenna solution for compatible vehicle installations.

Key Features

• Covers the 403–430 MHz UHF frequency range

• Quarter-wave design provides balanced omnidirectional coverage

• Suitable for urban, suburban and varied-terrain environments

• Permanent through-hole mount creates a secure installation

• Includes a low-loss coaxial cable

• Factory-installed Mini-UHF radio connector

• Designed for compatible Motorola UHF mobile radios

• Genuine Motorola Solutions antenna accessory

Product Specifications

• Manufacturer: Motorola Solutions

• Part Number: HAE4002A

• Product Type: Quarter-wave UHF mobile antenna kit

• Frequency Range: 403–430 MHz

• Frequency Band: UHF

• Antenna Design: Quarter-wave

• Radiation Pattern: Omnidirectional

• Approximate Antenna Height: 5.9 inches

• Mounting Type: Through-hole roof mount

• Cable Length: Approximately 17 feet

• Cable Type: RG58 coaxial cable

• Radio Connector: Mini-UHF

• Installation Type: Permanent vehicle mount

Quarter-Wave Coverage Pattern

The HAE4002A provides a broad signal pattern around the vehicle. Unlike a high-gain antenna that concentrates more energy toward the horizon, its quarter-wave design provides balanced vertical and horizontal coverage.

This makes it suitable for:

• Urban environments

• Areas with tall buildings

• Rolling or uneven terrain

• Locations with elevation changes

• General commercial fleet operations

Actual communication range depends on the radio system, transmitter power, terrain, antenna location and surrounding structures.

Compatible Radio Families

Designed for select Motorola UHF mobile radios operating within 403–430 MHz, including compatible:

• CM200d

• CM300d

• XPR 2500

• XPR 4000 Series

• XPR 5000 Series

• XPR 5000e Series

• CDM Series

• MOTOTRBO DM and DGM Series

• Select GM, PM and XiR mobile radios

Compatibility depends on the radio’s exact UHF frequency range and Mini-UHF antenna connection. Please verify both before ordering.

Frequency Selection Notice

The HAE4002A is designed specifically for 403–430 MHz. Motorola mobile radios may be available in several UHF band splits, so the radio model alone may not confirm antenna compatibility.

Check the radio’s programmed frequencies or complete model number before ordering.

Quarter-Wave vs. Gain Antennas

The HAE4002A is a strong choice when balanced coverage is more important than maximizing horizontal range.

A higher-gain antenna may provide additional coverage across flat terrain, but its compressed vertical pattern can be less effective around steep hills, valleys or significant elevation changes.

Permanent Through-Hole Installation

Installation requires drilling an appropriate mounting hole through a suitable vehicle roof or conductive metal surface. Professional installation is recommended to ensure:

• Proper antenna grounding

• Weather-resistant sealing

• Safe coaxial-cable routing

• Correct antenna placement

• Verification of reflected power

• Compliance with RF-exposure requirements

Important Product Distinction

The HAE4002A is a non-GPS RF antenna. It does not provide GPS or GNSS reception. A separate GPS antenna or compatible combination antenna is required when location services are needed.

Package Contents

• One Motorola HAE4002A 403–430 MHz quarter-wave antenna

• Through-hole mounting base

• Low-loss coaxial cable

• Mini-UHF radio connector

Mobile radio, GPS equipment and installation tools are not included.
