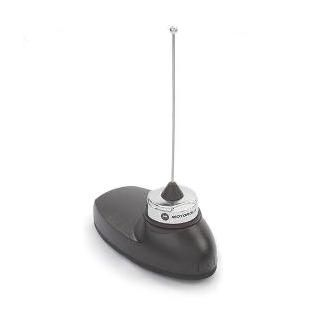

Combination GPS/UHF 3.5 dB Gain Antenna, 406–420 MHz

The Motorola PMAE4032 is a combination GPS and UHF mobile antenna that provides dependable two-way radio communication and satellite-positioning reception through one professional vehicle installation.

Its 3.5 dB gain design is optimized for extended UHF communication coverage across the specialized 406–420 MHz frequency range.

Featuring permanent through-hole mounting and a Mini-UHF radio connector, this genuine Motorola antenna supports voice, data and GPS vehicle-location applications.

Key Features

• Combination UHF and GPS antenna

• UHF frequency range of 406–420 MHz

• 3.5 dB UHF gain

• Integrated GPS reception

• Permanent through-hole mounting

• Mini-UHF radio-frequency connector

• Supports voice, data and vehicle-location applications

• Reduces the need for separate UHF and GPS antennas

• Designed for professional fleet installations

• Genuine Motorola accessory

• Motorola part number PMAE4032

Combined Radio and GPS Coverage

The PMAE4032 combines a gain UHF communication antenna and GPS antenna into one vehicle-mounted assembly. It supports two-way voice and data communication while providing satellite reception for compatible radio location and fleet-tracking features.

This combined design creates a cleaner installation and requires less mounting space than separate UHF and GPS antennas.

Balanced 3.5 dB UHF Performance

The antenna’s 3.5 dB gain provides a practical balance between the broad vertical coverage of a unity-gain antenna and the extended horizontal range of a higher-gain design.

It is well suited for mixed urban, suburban and highway environments where fleets need dependable communication across changing coverage conditions.

Specialized 406–420 MHz Coverage

The PMAE4032 is specifically designed for Motorola UHF mobile radios operating between 406 and 420 MHz. Because this is a narrower and specialized portion of the UHF band, it is essential to verify the radio’s exact frequency split before purchase.

This antenna should not be used with radios configured exclusively for other UHF ranges, such as 403–430 MHz or 450–470 MHz, without first confirming compatibility.

Permanent Through-Hole Installation

This antenna is designed for permanent installation through a suitable metal vehicle roof or trunk surface. Mounting near the center of a metal roof generally provides the strongest available ground plane and the most consistent UHF performance.

Professional installation is recommended to ensure proper placement, weather sealing, cable routing and connector installation.

Radio Compatibility

The PMAE4032 is compatible with select GPS-capable Motorola UHF mobile radios that operate between 406 and 420 MHz and use the appropriate Mini-UHF connection.

Compatibility depends on:

• The radio’s exact UHF frequency split

• GPS capability

• Antenna connector type

• Radio programming and location-service configuration

Confirm all compatibility requirements before ordering.

Part-Number Note

This antenna may appear in Motorola documentation as PMAE4032 or PMAE4032A. Confirm the complete orderable part number and availability when purchasing.

Why Choose the Motorola PMAE4032?

The PMAE4032 combines balanced UHF gain and GPS reception in one professional antenna system. It is an excellent choice for fleets requiring reliable 406–420 MHz communication and vehicle location reporting without installing separate antennas.

For assistance confirming radio compatibility or the complete orderable part number, contact Delmarva Communications before ordering.
