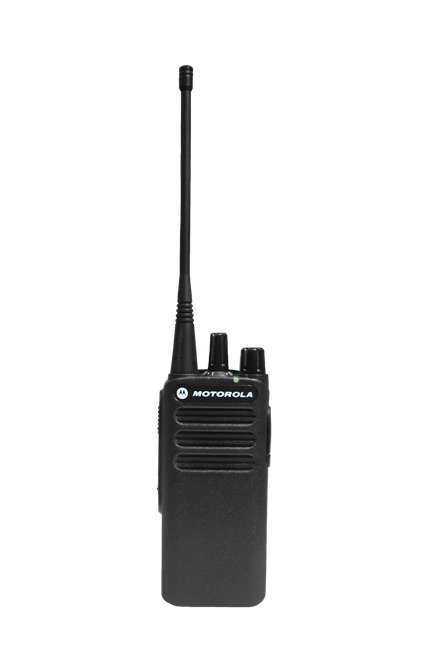

Motorola MOTOTRBO CP100d VHF 5W 16-Channel Digital Portable Radio

The Motorola MOTOTRBO CP100d AAH87JDC9JA2AN VHF Portable Two-Way Radio delivers dependable analog and digital communications in a rugged, straightforward design built for everyday professional use.

Operating across the 136–174 MHz VHF frequency range with up to 5 watts of RF output power, the CP100d provides reliable communications for businesses and organizations operating compatible commercial VHF radio systems.

The AAH87JDC9JA2AN supports both analog and MOTOTRBO DMR digital operation, allowing organizations to continue using compatible existing analog channels while providing a straightforward path toward digital communications.

This configuration features 16-channel capacity with no display and no keypad, providing a simple, easy-to-use interface for employees who primarily need reliable push-to-talk communications without navigating menus or complex controls.

Key Features

• Genuine Motorola Solutions MOTOTRBO portable radio

• Motorola CP100d Series

• VHF operation

• 136–174 MHz frequency range

• Analog and MOTOTRBO DMR digital operation

• Up to 5 watts RF output power

• 16-channel capacity

• Non-display configuration

• Non-keypad design

• Voice announcement

• Simple Voice Scrambler

• Conventional analog operation

• Conventional digital operation

• DMR digital technology

• Dual Capacity Direct Mode

• Repeater capable

• Channel scanning

• Priority scanning

• Nuisance Channel Delete

• Repeater / Talkaround operation

• High / Low power selection

• VOX capability

• Busy Channel Lockout

• Time-Out Timer

• Radio Check

• Remote Monitor

• Radio Inhibit

• Basic Privacy

• LED status indicator

• Rotary channel selector

• Easy-access Push-to-Talk button

• 12.5 / 25 kHz channel spacing

• IP54 rated

• MIL-STD-810 C/D/E/F/G

• Rugged commercial construction

• Designed for professional and commercial communications

• Motorola model number: AAH87JDC9JA2AN

VHF 136–174 MHz

The AAH87JDC9JA2AN operates across:

136–174 MHz VHF

This broad VHF frequency coverage makes the CP100d suitable for properly licensed commercial VHF radio systems operating within its supported frequency range.

VHF communications are commonly used in applications such as:

• Construction

• Agriculture

• Transportation

• Schools and campuses

• Property management

• Security

• Maintenance

• Facility operations

• Outdoor work environments

• Utilities

• Warehousing

• Commercial operations

Radio frequencies and system parameters must be properly programmed for the customer's authorized communications system.

Analog & MOTOTRBO Digital

The AAH87JDC9JA2AN supports:

Analog + MOTOTRBO DMR Digital

This provides organizations with flexibility when transitioning from an existing analog radio system.

Compatible analog channels can continue to be used while MOTOTRBO digital communications are introduced according to operational requirements.

This allows organizations to migrate toward digital communications without necessarily replacing every compatible analog radio at the same time.

RF Output Power

The VHF CP100d provides up to:

5 Watts RF Output

The higher VHF output provides professional communications performance for compatible commercial radio systems.

Actual communication range depends on terrain, buildings, antenna selection, interference, radio programming, repeater infrastructure, and other environmental factors.

16-Channel Capacity

The AAH87JDC9JA2AN supports:

16 Channels

This provides enough flexibility for many commercial communications systems while keeping everyday radio operation simple.

Channels can be programmed for different:

• Departments

• Work groups

• Locations

• Shifts

• Repeater systems

• Analog channels

• Digital channels

• Security teams

• Maintenance teams

• Operational groups

Users can quickly move between programmed channels using the radio's rotary channel selector.

Non-Keypad Design

This CP100d configuration features:

No Keypad

The streamlined interface is designed for employees who primarily need straightforward push-to-talk communications.

Users have quick access to essential controls without needing to navigate a keypad or menu system.

This makes the radio particularly useful for larger employee fleets where simplicity, consistency, and minimal training are priorities.

Non-Display Configuration

The AAH87JDC9JA2AN also features:

No Display

The absence of a screen further simplifies radio operation.

For organizations requiring visual radio information or substantially greater channel capacity, Motorola offers CP100d display models with limited and full keypads and up to 160 channels.

Voice Announcement

The CP100d supports:

Voice Announcement

Audible announcements can provide channel information without requiring a visual display.

This is particularly useful on the AAH87JDC9JA2AN because the radio is designed without a screen.

Dual Capacity Direct Mode

The CP100d supports:

Dual Capacity Direct Mode

This MOTOTRBO capability uses the two-slot TDMA architecture of DMR to provide two communication paths on a single 12.5 kHz frequency without requiring a repeater.

Feature availability depends on radio programming and system configuration.

Digital Radio Features

Depending on programming and system configuration, supported digital functionality can include:

• Digital voice communications

• Dual Capacity Direct Mode

• Radio Check

• Remote Monitor

• Radio Inhibit

• Basic Privacy

• Digital scanning

• Digital signaling

Simple Voice Scrambling

For supported analog communications, the CP100d provides:

Simple Voice Scrambling

This can provide basic voice obfuscation for compatible analog communications when appropriately configured.

Simple voice scrambling should not be considered strong encryption and should not be used as a substitute for secure communications where encryption is required.

Rugged Construction

The CP100d carries an:

IP54 Rating

This provides protection against limited dust ingress and splashing water.

The CP100d platform is also designed to meet applicable:

MIL-STD-810 C, D, E, F and G

environmental testing requirements for professional communications equipment.

Standard Battery

The standard AAH87JDC9JA2AN package includes the:

PMNN4476 1750 mAh Li-Ion Battery

Typical battery performance is approximately:

10.7 Hours – Analog

14.4 Hours – Digital

Actual battery life varies according to transmit activity, radio configuration, battery condition, temperature, signal conditions, and other operating factors.

Standard Package

The standard AAH87JDC9JA2AN package includes:

• Motorola CP100d VHF Analog/Digital Portable Radio

• PMNN4476 – 1750 mAh Li-Ion Battery

• NAD6502 – VHF Antenna

• PMPN4132 – Battery Charger

• HLN9844 – Belt Clip

Package contents should always be verified at the time of purchase.

Analog/Digital vs. Analog-Only VHF Models

Motorola offers two very similar VHF non-keypad CP100d configurations:

AAH87JDC9JA2AN = VHF / 16 Channels / Non-Keypad / Analog & Digital

AAH87JDC9JC2AN = VHF / 16 Channels / Non-Keypad / Analog Only

The radios are otherwise very similar, making the complete model number important when ordering.

Customers requiring MOTOTRBO DMR digital communications should select the AAH87JDC9JA2AN.

Customers who only require conventional analog communications can select the AAH87JDC9JC2AN.

VHF vs. UHF

The analog/digital non-keypad CP100d is available in both VHF and UHF configurations:

AAH87JDC9JA2AN = VHF / 136–174 MHz / 5W / 16 Channels

AAH87YDC9JA2AN = UHF / 403–480 MHz / 4W / 16 Channels

Customers should select the frequency band that matches their existing radio system and authorized frequencies.

Important

The AAH87JDC9JA2AN is the:

VHF 136–174 MHz / 5W / 16-Channel / Non-Keypad / Non-Display / Analog & Digital CP100d

This SKU supports both conventional analog and MOTOTRBO DMR digital communications.

It should not be confused with:

AAH87JDC9JC2AN – VHF 16-Channel Analog-Only CP100d

Radio programming is required before operation.

Operating frequencies and system parameters must be properly configured for the customer's communications system.

FCC licensing may be required depending on the frequencies and application in which the radio is used.

Specifications

Manufacturer: Motorola Solutions
Series: MOTOTRBO CP Series
Model: CP100d
Model Number: AAH87JDC9JA2AN
Product Type: Portable Two-Way Radio
Band: VHF
Frequency Range: 136–174 MHz
RF Output Power: Up to 5 Watts
Operating Mode: Analog / Digital
Digital Protocol: DMR
Channel Capacity: 16 Channels
Channel Spacing: 12.5 / 25 kHz
Display: None
Keypad: None
Voice Announcement: Yes
Simple Voice Scrambler: Yes
Dual Capacity Direct Mode: Yes
Repeater Capable: Yes
Standard Battery: PMNN4476
Battery Chemistry: Lithium-Ion
Battery Capacity: 1750 mAh
Typical Battery Life – Analog: Approximately 10.7 Hours
Typical Battery Life – Digital: Approximately 14.4 Hours
Standard VHF Antenna: NAD6502
Standard Charger: PMPN4132
Standard Belt Clip: HLN9844
IP Rating: IP54
MIL-STD: 810 C/D/E/F/G
Primary Application: Commercial VHF Analog and Digital Communications
