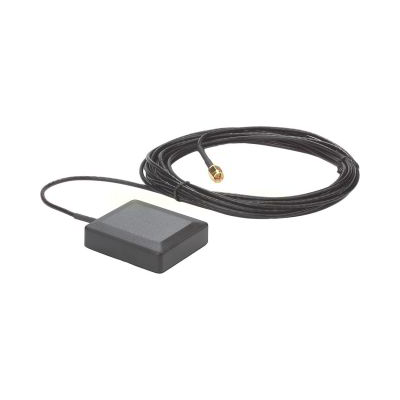

GNSS/GPS Dash-Mount Antenna for TLK 150

The Motorola AN000359A01 is a compact GNSS dash-mount antenna designed specifically for the Motorola TLK 150 WAVE mobile radio. It provides the external satellite-signal reception needed to support the radio’s GPS and location-reporting capabilities.

Its low-profile design allows the antenna to be installed discreetly on a suitable vehicle dashboard surface. This helps the TLK 150 receive GNSS positioning data without requiring a permanent exterior antenna hole.

When used with supported WAVE PTX location services, the antenna helps organizations monitor compatible fleet radios, coordinate field personnel and improve operational visibility.

Key Features

• External GNSS and GPS antenna for the Motorola TLK 150

• Supports compatible radio location-reporting functions

• Low-profile dashboard mounting

• Compact design for discreet vehicle installation

• Adhesive installation requires no exterior antenna hole

• Integrated coaxial connection cable

• SMA male antenna connector

• Genuine Motorola Solutions accessory

• Manufacturer part number: AN000359A01

Product Specifications

• Product Type: GNSS dash-mount antenna

• Manufacturer Part Number: AN000359A01

• Satellite Function: GNSS and GPS signal reception

• Mounting Type: Dashboard

• Mounting Method: Adhesive

• Connector Type: SMA male

• Approximate Dimensions: 0.63" H × 1.82" W × 1.95" L

• Approximate Metric Dimensions: 16 × 46.23 × 49.53 mm

• Compatible Brand: Motorola Solutions

• Compatible Radio: TLK 150

Compatibility

Designed specifically for:

• Motorola TLK 150 WAVE mobile radio

The AN000359A01 connects to the TLK 150’s rear GNSS antenna connection. It is separate from the AN000358A01 LTE antenna used for the radio’s cellular broadband connection.

GNSS Location Support

The antenna provides satellite-signal reception for the TLK 150’s compatible GNSS and assisted-GPS capabilities. Location features may support services using GPS, GLONASS, Galileo and BeiDou satellite systems.

Location reporting requires the appropriate radio configuration, WAVE PTX service and available satellite reception. Actual performance can vary based on antenna placement, vehicle construction and surrounding obstructions.

Package Contents

• One Motorola AN000359A01 GNSS dash-mount antenna

• Integrated connection cable

• SMA male connector

• TLK 150 radio and LTE antenna are not included

Installation Information

Mount the antenna on a clean, dry dashboard surface with a clear view through the vehicle windshield whenever possible. Avoid locations underneath metal surfaces or equipment that could block satellite signals.

Position the antenna where it will not obstruct the driver’s view, airbags or vehicle controls. Route the cable away from sharp edges, excessive heat and moving components.

Ideal Applications

• Commercial fleet vehicles

• Transportation and logistics

• Utility and maintenance operations

• Construction vehicles

• Municipal fleets

• Field-service organizations

• Fleet location and dispatch systems

• TLK 150 replacement installations
