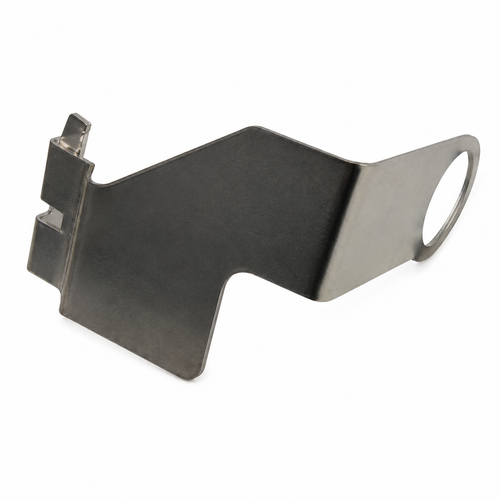

Motorola PMDN4054 Antenna Ground Plate for Mag One A8 / BPR40

The Motorola PMDN4054 Antenna Ground Plate is a specialized service accessory designed to provide improved grounding when performing tuning, measurement, and testing procedures on compatible Motorola Mag One portable two-way radios.

Designed for use by radio technicians and service professionals, the PMDN4054 helps establish the proper grounding conditions needed when conducting radio alignment and RF measurements. This allows technicians to perform service procedures under more consistent and reliable test conditions.

The grounding plate is intended for bench service and technical applications rather than normal everyday radio operation. It is a useful addition to professional radio service facilities, dealer repair departments, and organizations responsible for maintaining compatible Motorola Mag One portable radios.

Key Features

• Antenna grounding plate for compatible Motorola Mag One radios

• Improves grounding during radio tuning and measurement

• Designed for professional radio testing and service applications

• Helps provide consistent conditions during RF measurements

• Suitable for radio alignment and maintenance procedures

• Intended for use by radio technicians and service professionals

• Part of the Motorola Mag One service accessory system

• Genuine Motorola Solutions service accessory

• Motorola part number: PMDN4054

Compatible Radios

• Motorola Mag One A8

• Motorola Mag One BPR40

Important

The PMDN4054 is a service and test accessory and is not intended as an everyday operational accessory for the radio.

It is designed to improve grounding while technicians perform tuning, measurement, and other applicable radio service procedures.

Additional Motorola service equipment may be required depending on the specific testing or alignment procedure being performed.

Specifications

Manufacturer: Motorola Solutions
Part Number: PMDN4054
Also Referenced As: PMDN4054AR
Product Family: Mag One
Accessory Type: Antenna Ground Plate
Application: Radio Testing, Tuning & Measurement
Primary Use: Improved Grounding During Service
Compatible Radios: Mag One A8, BPR40
Intended Users: Radio Technicians & Service Professionals
