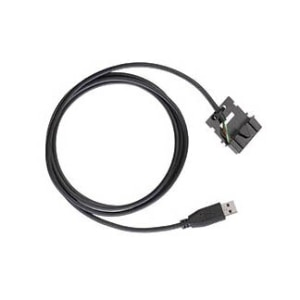

MOTOTRBO Rear Programming, Test & Alignment Cable

The Motorola PMKN4016B is a specialized rear-connector cable designed for programming, testing and aligning compatible MOTOTRBO mobile radios and repeaters.

It connects compatible equipment to a computer for programming or to the Motorola RLN4460 test box for supported service and alignment procedures.

Ideal for radio dealers, service centers and trained communications technicians, this genuine Motorola cable combines multiple maintenance functions into one dependable service accessory.

Key Features

• Supports radio and repeater programming

• Enables supported testing and alignment procedures

• Connects through the equipment’s rear accessory connector

• USB connection for use with a compatible computer

• Interfaces with the Motorola RLN4460-series test box

• Designed for professional radio-service environments

• Genuine Motorola Solutions accessory

Product Specifications

• Manufacturer: Motorola Solutions

• Model Number: PMKN4016B

• Accessory Type: Programming, test and alignment cable

• Connector Location: Rear accessory connector

• Computer Interface: USB

• Equipment Type: MOTOTRBO mobile radios and repeaters

• Color: Black

Compatible Mobile Radios

The PMKN4016B supports various MOTOTRBO mobile-radio families, including:

• XPR 4350

• XPR 4550

• XPR 5350 and XPR 5350e

• XPR 5550 and XPR 5550e

• XPR 5000 and XPR 5000e Series

• DM3400 and DM3600 Series

• DM4400 and DM4400e

• DM4401 and DM4401e

• DM4600 and DM4600e

• DM4601 and DM4601e

Compatible Repeaters

Compatible repeater models include:

• Motorola DR3000

• Motorola XPR 8300

• Motorola XPR 8400

• Regional equivalents such as the DGR 6175 and XiR R8200

Compatibility may vary by radio model, configuration and region. Confirm compatibility before ordering.

Programming Functions

The cable can connect a compatible mobile radio or repeater directly to a computer for programming with the appropriate Motorola Customer Programming Software.

Programming software, subscriptions and required system access are not included.

Test and Alignment Operation

For supported testing and alignment procedures, the PMKN4016B connects compatible equipment to a Motorola RLN4460-series test box. Additional test equipment may be required depending on the service procedure.

The test box, service monitor and other diagnostic equipment are sold separately.

Important Cable Comparison

Unlike rear programming-only cables, the PMKN4016B supports programming as well as compatible test and alignment procedures. It is intended as a professional service cable rather than a general-purpose accessory integration cable.

Package Contents

• One Motorola PMKN4016B programming, test and alignment cable

Radio, repeater, computer, programming software, test box and service equipment are not included.

Ideal Applications

• Radio programming and configuration

• Repeater setup and maintenance

• Bench testing and diagnostics

• Radio alignment procedures

• Communications service shops

• Fleet maintenance departments

• Authorized radio dealers and technicians

Alignment changes can affect radio performance and regulatory compliance. Testing and alignment should only be performed by properly trained technicians using approved procedures and equipment.
