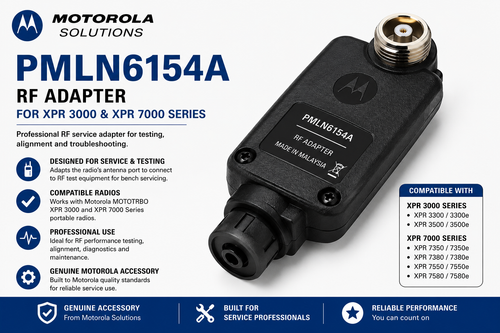

RF Adapter for XPR 3000 & XPR 7000 Series

The Motorola PMLN6154A RF Adapter is a professional service accessory designed for RF testing, alignment, troubleshooting, and maintenance of compatible Motorola MOTOTRBO XPR 3000 and XPR 7000 Series portable two-way radios.

The adapter connects to the radio's antenna port and provides an RF connection that allows compatible test equipment to be connected to the portable radio during bench servicing.

Designed primarily for radio technicians, Motorola dealers, service centers, and organizations maintaining their own radio fleets, the PMLN6154A provides the interface needed to perform supported RF performance tests without relying on the radio's standard portable antenna.

The PMLN6154A is a service and test accessory and is not intended to serve as an everyday external antenna adapter for normal portable-radio operation.

Key Features

• Professional RF service adapter

• Designed for compatible Motorola MOTOTRBO portable radios

• Supports XPR 3000 Series service applications

• Supports XPR 7000 Series service applications

• Connects to the portable radio's antenna port

• Provides an RF interface for compatible test equipment

• Designed for radio testing and alignment

• Suitable for transmitter testing

• Suitable for receiver testing

• Supports radio troubleshooting and diagnostics

• Designed for service-monitor applications

• Suitable for bench servicing

• Useful for performance verification

• Designed for professional radio service environments

• Suitable for Motorola dealers and service centers

• Suitable for fleet maintenance departments

• May be used with additional Motorola RF service accessories

• Not intended as a standard external antenna adapter

• Portable radio sold separately

• Test equipment sold separately

• Genuine Motorola Solutions service accessory

• Motorola part number: PMLN6154A

• Base part number: PMLN6154

Compatible Radio Series

The PMLN6154A is designed for compatible:

Motorola MOTOTRBO XPR 3000 Series

and

Motorola MOTOTRBO XPR 7000 Series

Documented applications include select radios such as:

• Motorola XPR 3300

• Motorola XPR 3300e

• Motorola XPR 3500

• Motorola XPR 3500e

• Motorola XPR 7350

• Motorola XPR 7350e

• Motorola XPR 7380

• Motorola XPR 7380e

• Motorola XPR 7550

• Motorola XPR 7550e

• Motorola XPR 7580

• Motorola XPR 7580e

Compatibility should be verified for the specific radio model and service procedure being performed.

RF Test Connection

The PMLN6154A connects to the compatible portable radio's:

RF / Antenna Port

This provides a connection point for compatible RF test equipment.

The adapter allows technicians to connect the radio to an appropriate service setup for controlled RF testing rather than transmitting through the radio's normal antenna.

Service and Testing Applications

The PMLN6154A is intended primarily for professional applications such as:

• RF performance testing

• Transmitter testing

• Receiver testing

• Radio alignment

• Radio tuning

• Radio diagnostics

• Troubleshooting

• Service-monitor connection

• Performance verification

• Repair verification

• Bench servicing

• Preventive maintenance

The exact service configuration depends on the radio model and testing procedure being performed.

Additional Service Equipment

Depending on the service procedure, the PMLN6154A may be used with additional equipment such as:

• RF test cable

• RF adapter holder

• Service monitor

• Spectrum analyzer

• Radio test set

• Battery eliminator

• Programming / test cable

• Regulated power supply

• Computer with appropriate Motorola service software

Additional service equipment is sold separately.

RF Adapter Holder

For some supported service configurations, the PMLN6154A can be used together with the:

Motorola PMLN6155A RF Adapter Holder

The holder is designed to help secure the RF adapter in the proper position during supported service procedures.

The PMLN6155A is sold separately.

XPR 3000 Series

The PMLN6154A supports RF service applications for compatible XPR 3000 Series portable radios.

This includes documented applications with radios such as the:

• XPR 3300

• XPR 3300e

• XPR 3500

• XPR 3500e

The adapter allows appropriate RF test equipment to interface with the radio during professional servicing.

XPR 7000 Series

The PMLN6154A is also used with compatible XPR 7000 Series portable radios.

Applications include select configurations of:

• XPR 7350 / XPR 7350e

• XPR 7380 / XPR 7380e

• XPR 7550 / XPR 7550e

• XPR 7580 / XPR 7580e

Always verify compatibility with the exact radio and service procedure before ordering.

Not an Everyday Antenna Adapter

The PMLN6154A is an:

RF Service Adapter

It is not intended to convert an XPR portable radio for routine use with an external vehicle, base-station, or other antenna.

Its primary purpose is to provide an RF connection for professional testing and servicing.

Customers looking for an antenna for normal portable-radio operation should select the appropriate Motorola antenna designed for their radio model and frequency band.

Important

The PMLN6154A is a professional radio service and test accessory.

It is not a programming cable.

It is not a replacement portable antenna.

It is not intended as a permanent external antenna connection.

Additional RF cables, adapters, holders, and test equipment may be required depending on the service configuration.

The portable radio and test equipment are sold separately.

Always follow the appropriate Motorola service procedures when performing RF testing or alignment.

Specifications

Manufacturer: Motorola Solutions
Part Number: PMLN6154A
Base Part Number: PMLN6154
Product Type: RF Adapter
Radio Platform: MOTOTRBO
Compatible Series: XPR 3000 / XPR 7000 Series
Connection: Portable Radio RF / Antenna Port
Application: RF Testing, Service, Alignment and Maintenance
Programming Cable: No
Antenna: No
Radio Included: No
Test Equipment Included: No
Primary Use: Professional Radio Service and RF Testing
