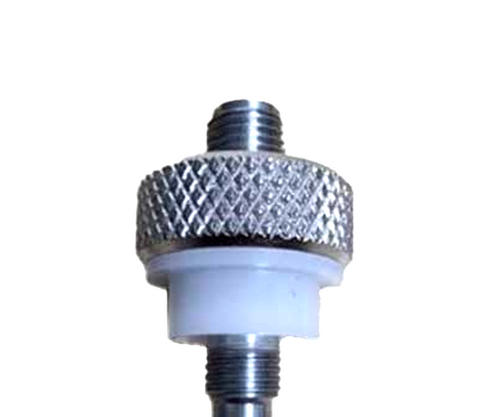

Screw-In RF Test Adapter for MOTOTRBO R5 and R7 Radios

The Motorola TL000173A02 is a genuine screw-in RF adapter designed for professional testing and servicing of compatible Motorola MOTOTRBO portable radios.

Installed at the radio’s antenna connection, the adapter provides an interface for compatible RF cables and test equipment. This allows qualified technicians to perform supported transmitter, receiver, alignment, and performance-verification procedures.

The TL000173A02 is identified for compatible MOTOTRBO R5 and R7-series service applications. It is a specialized bench-service tool and is not intended to serve as a permanent antenna adapter during normal radio operation.

Key Features

• Genuine Motorola RF service adapter

• Screw-in installation at the radio antenna connection

• Designed for compatible MOTOTRBO portable radios

• Supports connection to compatible RF test equipment

• Suitable for transmitter and receiver measurements

• Supports professional testing and alignment procedures

• Compact and reusable technician service tool

• Not intended for permanent antenna installation

Compatible Radio Platforms

The TL000173A02 is identified for service use with compatible radios from the following platforms:

• Motorola MOTOTRBO R5 Series

• Motorola MOTOTRBO R7 Series

Compatibility may depend on the exact radio model, hardware revision, and regional configuration. Confirm the complete radio model before ordering.

RF Testing and Alignment

When used with the proper RF cable, test equipment, software, and Motorola service procedures, the adapter can assist technicians with:

• Transmitter output measurements

• Receiver sensitivity testing

• Frequency and modulation checks

• RF alignment

• Performance verification

• Troubleshooting and repair validation

Available procedures depend on the radio, connected equipment, and technician authorization.

Screw-In Service Connection

The screw-in design creates a secure physical connection at the compatible radio’s antenna port. It should be installed and removed carefully using the procedures and torque requirements specified in the applicable Motorola service documentation.

Professional Service Tool

This adapter is intended for qualified radio technicians familiar with RF measurement equipment and Motorola service procedures. Improper installation or test-equipment settings may damage the radio, adapter, or connected equipment.

Package and Compatibility Notice

This listing includes one TL000173A02 screw-in RF adapter only. The radio, RF cable, antenna, test equipment, programming cable, software, and service documentation are not included. Please confirm the required test configuration with Delmarva Communications before purchasing.

Why Choose the Motorola TL000173A02?

The TL000173A02 provides an OEM interface for connecting compatible MOTOTRBO radios to professional RF test equipment. It is a practical service accessory for technicians performing diagnostics, alignment, maintenance, and post-repair verification.
