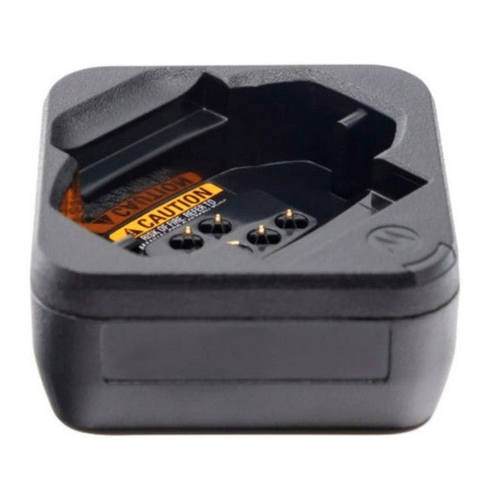

Single-Unit Charger Tray for DTR600 / DTR700 / DTR720

The Motorola PMPN4468 Single-Unit Charger Tray provides a compact desktop charging solution for compatible Motorola DTR Series digital two-way radios and batteries.

Designed for the Motorola DTR600, DTR700, and DTR720 radio platform, the PMPN4468 provides a single charging position for convenient everyday radio and battery charging.

The charger tray can accommodate a complete compatible radio with its battery installed or a compatible standalone battery. This gives users the flexibility to charge their radio directly or keep a spare battery charged and ready for use.

Its compact drop-in design requires minimal desk or counter space, making the PMPN4468 ideal for individual users, offices, workstations, security desks, reception areas, equipment rooms, and other locations where a dedicated charging position is needed.

The radio is simply positioned in the charger with the front of the radio facing the charger's LED indicator. The LED provides charging-status information, displaying red while the battery is charging and green when charging is complete.

The PMPN4468 is supplied as the charger tray only. A compatible Motorola power supply is required and sold separately.

For customers who need a complete North American charging package including the tray and power supply, Motorola offers the PMPN4469 Single-Unit Charger Kit.

The PMPN4468 is ideal as a replacement charger tray, an additional charging location, or for users who already own a compatible Motorola power supply.

Key Features

• Single-unit charger tray

• Designed for compatible Motorola DTR Series radios

• Single charging position

• Charges radio with battery installed

• Charges compatible standalone battery

• Compact drop-in desktop design

• LED charging-status indicator

• Red LED indicates battery charging

• Green LED indicates charging complete

• Ideal for individual users and dedicated workstations

• Compact footprint helps conserve desk and counter space

• Compatible with Motorola DTR600

• Compatible with Motorola DTR700

• Compatible with Motorola DTR720

• Supports compatible PMNN4578 Series Li-Ion batteries

• Charger tray only

• Power supply sold separately

• Useful as a replacement or additional charging tray

• Genuine Motorola Solutions charging accessory

• Motorola part number: PMPN4468

Compatible Radios

Motorola-documented applications include:

• Motorola DTR600

• Motorola DTR700

• Motorola DTR720

Compatible Battery

• Motorola PMNN4578 Series Li-Ion Battery

The compatible battery can be charged either while installed in the radio or separately in the PMPN4468 charger tray.

Compatible Power Supplies

Motorola documentation identifies compatible power-supply options including:

• Motorola PS000228A01 3W Micro-USB Power Supply

• Motorola PS000227A11 5W Micro-USB Quick-Charge Power Supply

The appropriate regional power supply must be used with the PMPN4468 tray.

Important

The PMPN4468 is a Single-Unit Charger Tray only.

A wall power supply is not included and must be purchased separately if the customer does not already have a compatible Motorola power supply.

Do not confuse PMPN4468 with PMPN4469.

PMPN4468 = Charger Tray Only

PMPN4469 = North American Charger Kit with Tray + Power Supply

The PMPN4468 can charge either the complete compatible DTR radio with its battery installed or a compatible standalone battery.

Always use a Motorola-approved power supply with the charger tray.

Specifications

Manufacturer: Motorola Solutions
Part Number: PMPN4468
Accessory Type: Single-Unit Charger Tray
Number of Charging Positions: 1
Charging Configuration: Radio with Battery or Standalone Battery
Compatible Radio Series: DTR Series
Primary Compatible Radios: DTR600, DTR700, DTR720
Compatible Battery: PMNN4578 Series
Charging Style: Drop-In
LED Charging Indicator: Yes
Power Connection: Micro-USB
Power Supply Included: No
PMPN4469 Kit Component: Yes
Installation: Desktop
Application: Individual Radio / Battery Charging
