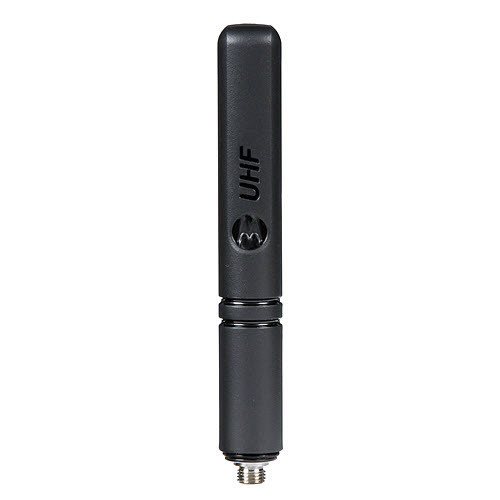

UHF/GPS Stubby Antenna (403–450 MHz) – FM/UL Approved

The Motorola PMAE4069A is a genuine UHF/GPS stubby antenna designed for compatible MOTOTRBO portable radios operating between 403 and 450 MHz. Its compact profile makes it an excellent replacement antenna for professionals who carry their radios on a belt, vest or uniform.

At approximately 3.5 inches long, the PMAE4069A offers a practical balance between compact size and dependable UHF communication performance. Its durable rubber and plastic construction is designed for regular use in commercial, industrial and public-safety environments.

This antenna supports GPS-equipped radios and is approved for use with select FM and UL-certified radio configurations. Intrinsic-safety approval applies only when the antenna is installed as part of a complete, properly certified Motorola radio system.

Compatible Motorola Radios

Compatible models may include:

• MOTOTRBO XPR3300 and XPR3300e

• MOTOTRBO XPR3500 and XPR3500e

• MOTOTRBO XPR7350 and XPR7350e

• MOTOTRBO XPR7380 and XPR7380e

• MOTOTRBO XPR7550 and XPR7550e

• MOTOTRBO XPR7580 and XPR7580e

• MOTOTRBO Ion

• Select UL-approved XPR3000 and XPR7000 Series radios

Compatibility and intrinsic-safety approval depend on the radio model, frequency configuration and complete certified accessory combination.

Key Features

• Genuine Motorola Solutions antenna

• UHF frequency range: 403–450 MHz

• Compact stubby antenna design

• Approximately 3.5 inches or 9 cm long

• Supports GPS-equipped portable radios

• Red frequency-identification band

• Durable rubber and plastic construction

• Shorter and less obtrusive than a whip antenna

• Ideal for belt-, vest- or uniform-worn radios

• Approved for select FM and UL radio configurations

• Installs directly onto the portable radio

Product Specifications

• Manufacturer: Motorola Solutions

• Part Number: PMAE4069A

• Product Type: Portable radio antenna

• Frequency Band: UHF

• Frequency Range: 403–450 MHz

• Antenna Style: Stubby

• Approximate Length: 3.5 inches or 9 cm

• Material: Rubber and plastic

• GPS Support: Yes

• Mounting Style: Direct mount

• Frequency Color Code: Red

• Safety Approval: Approved for select FM and UL-certified radio configurations

Package Contents

• One Motorola PMAE4069A UHF/GPS stubby antenna

Radio and other accessories are sold separately.

GPS Information

The PMAE4069A supports GPS reception when installed on a compatible GPS-equipped Motorola radio. Radios without integrated GPS can still use the antenna for UHF communications, but the antenna will not add GPS capability to the radio.

Important Frequency Information

The PMAE4069A is designed specifically for radios operating within the 403–450 MHz frequency range. Using an antenna outside the radio’s programmed frequency range may reduce communication performance.

Verify your radio model and operating frequencies before purchasing.

FM and UL Approval Information

This antenna may be used with select FM or UL-approved Motorola portable radios. The antenna itself does not make a standard radio intrinsically safe.

To maintain intrinsic-safety certification, every component—including the radio, battery, antenna and connected accessories—must be approved for use together under the applicable certification standard.

Ideal Applications

• Public safety communications

• Oil and gas facilities

• Utilities and infrastructure

• Manufacturing facilities

• Warehouses and distribution centers

• Construction operations

• Security teams

• Replacement of a damaged or missing antenna
