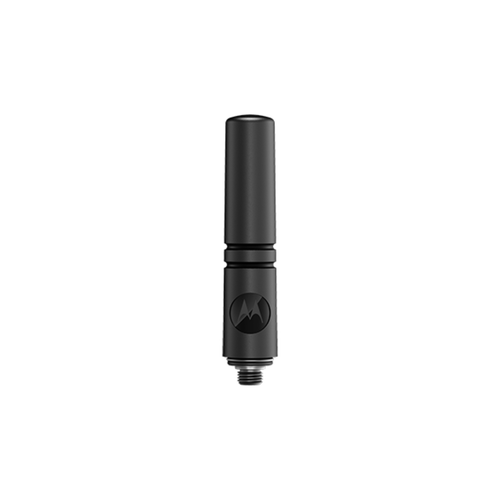

UHF Stubby Antenna for MOTOTRBO Ion and R7 (400–450 MHz, 60 mm)

The Motorola AN000350A01 is a genuine UHF stubby antenna designed for compatible MOTOTRBO Ion and R7 Series portable radios operating between 400 and 450 MHz. Its compact 60 mm profile provides dependable UHF communication while remaining comfortable and unobtrusive during everyday use.

This redesigned Motorola antenna is shorter and more flexible than many legacy MOTOTRBO antennas. The flexible ferrule mount helps the antenna conform to the user’s body, reduces stress on the radio’s antenna connector and minimizes snagging on clothing or equipment.

The AN000350A01 does not include an integrated GPS antenna element. Always confirm your radio model, required GPS functionality and programmed UHF frequency range before ordering.

Compatible Motorola Radios

• MOTOTRBO Ion

• MOTOTRBO R7

• MOTOTRBO R7a

• Select MOTOTRBO R Series radios using the same ferrule antenna system

Compatibility depends on the radio model, hardware band and frequency configuration.

Key Features

• Genuine Motorola Solutions antenna

• UHF frequency range: 400–450 MHz

• Compact stubby antenna design

• Approximately 60 mm or 2.36 inches long

• Flexible ferrule mounting system

• More compliant and comfortable than many legacy antennas

• Helps minimize snagging on clothing and equipment

• Designed for MOTOTRBO Ion and R7 Series radios

• Durable construction for professional use

• Direct replacement for a damaged or missing antenna

Product Specifications

• Manufacturer: Motorola Solutions

• Part Number: AN000350A01

• Product Type: Portable radio antenna

• Frequency Band: UHF

• Frequency Range: 400–450 MHz

• Antenna Style: Stubby

• Length: 60 mm or 2.36 inches

• Approximate Dimensions: 13.5 × 60 × 13.5 mm

• GPS Support: No

• Mounting Style: Flexible ferrule

• Color: Black

Package Contents

• One Motorola AN000350A01 UHF stubby antenna

Radio, antenna ID band and other accessories are sold separately.

Stubby Antenna Benefits

The compact 60 mm design helps reduce antenna bulk and is less likely to catch on clothing, seat belts or nearby equipment. Its flexible construction also helps improve comfort when the radio is worn on a belt or vest.

A stubby antenna may not provide the same fringe-area performance as a properly matched full-length whip antenna. Actual range depends on terrain, buildings, radio power and system configuration.

Important GPS Information

The AN000350A01 does not include an integrated GPS antenna element. If your radio configuration requires antenna-supported GPS reception, verify the correct antenna with your Motorola dealer or system administrator before ordering.

Important Frequency Information

The AN000350A01 is designed specifically for UHF radios operating within the 400–450 MHz frequency range.

It is not intended for:

• UHF radios operating exclusively above 450 MHz

• VHF radio configurations

• 800/900 MHz radio configurations

• Radios using an incompatible antenna mounting system

Verify your radio model and operating frequencies before purchasing.

Installation Information

Carefully align the antenna with the radio’s ferrule mount and tighten it by hand until securely seated. Do not use tools or overtighten the antenna, as this may damage the antenna base or radio connector.

Ideal Applications

• Public safety communications

• Utilities and infrastructure

• Manufacturing facilities

• Transportation and logistics

• Construction operations

• Security teams

• Government agencies

• Replacement of a damaged or missing antenna
