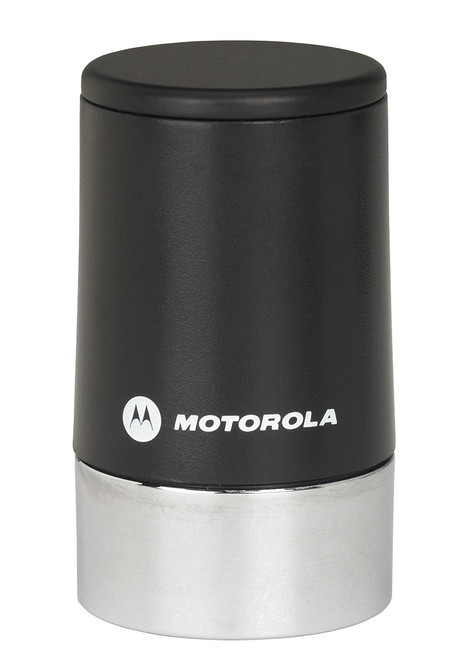

762–870 MHz 3 dB Low-Profile Mobile Antenna Kit

Equip a compatible Motorola 700/800 MHz mobile radio with a durable, low-profile antenna using the Motorola HAF4013A Through-Hole Antenna Kit.

This genuine Motorola antenna covers 762–870 MHz and provides 3 dB gain, directing more radio-frequency energy toward the horizon for improved wide-area coverage in relatively flat terrain.

Its compact stubby design, permanent through-hole mount, 17-foot low-loss cable and Mini-UHF connector provide a complete professional antenna solution for compatible mobile-radio installations.

Key Features

• Covers the 762–870 MHz frequency range

• Supports compatible 700 and 800 MHz mobile radios

• Provides 3 dB gain for improved horizontal coverage

• Compact stubby antenna minimizes overall vehicle height

• Permanent through-hole mount provides a secure installation

• Includes a 17-foot low-loss coaxial cable

• Factory-installed Mini-UHF radio connector

• Genuine Motorola Solutions mobile antenna

Product Specifications

• Manufacturer: Motorola Solutions

• Part Number: HAF4013A

• Product Type: Low-profile mobile-radio antenna kit

• Frequency Range: 762–870 MHz

• Frequency Band: 700/800 MHz

• Gain: 3 dB

• Radiation Pattern: Omnidirectional

• Approximate Dimensions: 2.38 × 1.5 × 1.5 inches

• Mounting Type: Through-hole

• Cable Length: 17 feet

• Radio Connector: Mini-UHF

• Installation Type: Permanent vehicle mount

Important Frequency Clarification

Although some older catalogs describe the HAF4013A as a “7/8/900 MHz” antenna, Motorola’s current specification identifies its supported frequency range as 762–870 MHz.

This antenna should not be selected for a radio operating above 870 MHz without confirming compatibility.

Low-Profile Design

The compact stubby housing reduces antenna height compared with a traditional whip. This makes the HAF4013A well suited for vehicles that regularly enter:

• Parking garages

• Maintenance buildings

• Loading areas

• Equipment bays

• Other low-clearance environments

Wide-Area Signal Performance

The 3 dB gain design concentrates more energy toward the horizon than a quarter-wave antenna. This can improve coverage across relatively flat terrain where communications must reach a larger horizontal area.

Actual radio range depends on transmitter power, system infrastructure, terrain, antenna location and surrounding structures.

Compatible Radio Families

Motorola identifies the HAF4013A for compatible 700/800 MHz mobile radios, including select:

• APX 1500

• APX 4500

• APX 6500

• APX 7500

• APX 8500

• XTL 1500

• XTL 2500

• XTL 5000

• Additional Motorola mobile radios operating within 762–870 MHz

Compatibility depends on the radio’s frequency band and Mini-UHF antenna connection. Please verify both before ordering.

Permanent Through-Hole Installation

Installation requires drilling an appropriate hole through a suitable vehicle roof or conductive metal surface. Professional installation is recommended to ensure:

• Proper grounding

• Weather-resistant sealing

• Safe cable routing

• Correct antenna placement

• Compliance with RF-exposure requirements

Important Product Distinction

The HAF4013A is a non-GPS RF antenna. It does not provide GPS or GNSS reception. A separate GPS antenna or compatible combination antenna is required when location services are needed.

Package Contents

• One Motorola HAF4013A 762–870 MHz stubby antenna

• Through-hole mounting base

• 17-foot low-loss coaxial cable

• Mini-UHF radio connector

Mobile radio, GPS equipment and installation tools are not included.
