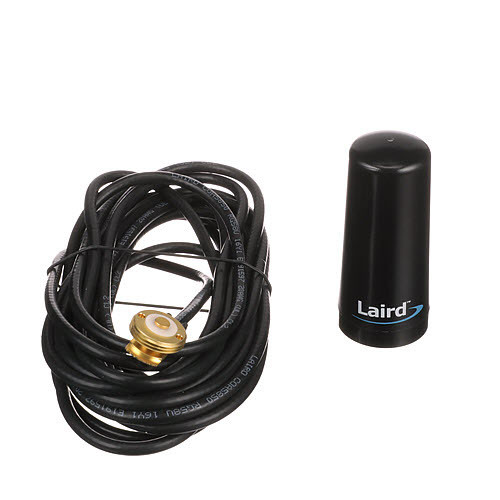

430–450 MHz 3 dB Low-Profile UHF Antenna Kit

Improve UHF mobile-radio coverage while maintaining a discreet vehicle profile with the Motorola RAE4164ARB Low-Profile Antenna Kit.

Designed specifically for the 430–450 MHz range, this genuine Motorola antenna provides 3 dB gain and directs more radio-frequency energy toward the horizon for improved wide-area performance.

Its compact black housing and permanent through-hole mounting system make it an excellent choice for professional fleet, public-safety and commercial vehicle installations.

Key Features

• Covers the 430–450 MHz UHF frequency range

• Provides 3 dB gain for improved horizontal coverage

• Compact stubby design minimizes overall vehicle height

• Black housing provides a professional, discreet appearance

• Permanent through-hole mount creates a secure installation

• Omnidirectional pattern supports communications around the vehicle

• Designed for compatible Motorola MOTOTRBO mobile radios

• Genuine Motorola Solutions antenna accessory

Product Specifications

• Manufacturer: Motorola Solutions

• Part Number: RAE4164ARB

• Product Type: Low-profile UHF mobile antenna kit

• Frequency Range: 430–450 MHz

• Frequency Band: UHF

• Gain: 3 dB

• Radiation Pattern: Omnidirectional

• Mounting Type: Through-hole

• Cable Type: RG58/U coaxial cable

• Cable Length: Approximately 17 feet

• Radio Connector: Mini-UHF

• Color: Black

• Installation Type: Permanent vehicle mount

Wide-Area UHF Performance

The RAE4164ARB’s 3 dB gain design concentrates more radio-frequency energy toward the horizon than a quarter-wave antenna. This makes it well suited for relatively flat terrain where communications must cover a broader horizontal area.

Actual communication range depends on:

• Radio transmitter power

• System infrastructure

• Terrain and surrounding buildings

• Antenna placement

• Cable condition

• Radio programming

Low-Profile Design

The compact stubby housing reduces the risk of contact with overhead obstructions and provides a cleaner appearance than a traditional whip antenna. It is particularly useful for vehicles that regularly enter:

• Parking garages

• Maintenance buildings

• Warehouses

• Loading areas

• Equipment bays

• Other low-clearance environments

Compatible Radio Families

Motorola identifies the RAE4164ARB for select mobile radios operating within 430–450 MHz, including compatible:

• XPR 4000 Series

• XPR 5000 Series

• XPR 5000e Series

• CM200d and CM300d

• CDM Series

• MOTOTRBO DM and DGM Series

• Select GM, PM and XiR mobile radios

Compatibility depends on the radio’s exact UHF frequency range and antenna connector. Please verify both before ordering.

Frequency Selection Notice

This antenna is designed specifically for 430–450 MHz. It should not be used with radios operating entirely outside this range.

Other Motorola antenna models are available for adjacent UHF ranges, including:

• 410–430 MHz

• 450–470 MHz

• 470–490 MHz

Select the antenna that matches the radio’s programmed operating frequencies.

Permanent Through-Hole Installation

Installation requires drilling an appropriate mounting hole through a suitable vehicle roof or conductive metal surface. Professional installation is recommended to ensure:

• Proper grounding

• Weather-resistant sealing

• Safe coaxial-cable routing

• Correct antenna positioning

• Compliance with RF-exposure requirements

Important Product Distinction

The RAE4164ARB is a non-GPS UHF antenna. It does not provide GPS or GNSS reception. A separate GPS antenna or compatible combination antenna is required when location services are needed.

Package Contents

• One Motorola RAE4164ARB 430–450 MHz low-profile antenna

• Through-hole mounting hardware

• Approximately 17-foot RG58/U coaxial cable

• Mini-UHF radio connector

Mobile radio, GPS equipment and installation tools are not included.
