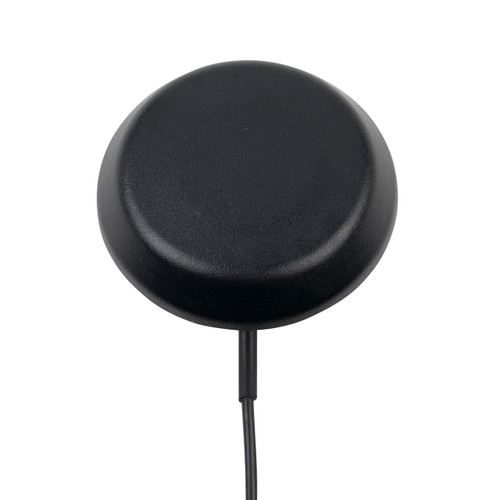

Fixed Through-Hole GPS Active Antenna

The Motorola PMAN4000A is a discreet active GPS antenna designed to provide compatible Motorola mobile radios with reliable satellite-positioning reception.

Its permanent through-hole mounting design creates a secure, low-profile installation on a vehicle roof or trunk, making it ideal for demanding fleet and public-safety applications.

With 3 dB gain and active signal amplification, this genuine Motorola antenna supports dependable location reporting, fleet tracking and other GPS-enabled radio features.

Key Features

• Active GPS satellite antenna

• 3 dB gain

• Fixed through-hole mounting design

• Installs on a vehicle roof or trunk

• Low-profile, discreet antenna housing

• Secure installation for fleet vehicles

• Supports compatible radio location and tracking features

• Separate from the radio’s voice-communication antenna

• Genuine Motorola accessory

• Motorola part number PMAN4000A

Reliable GPS Location Reception

The PMAN4000A receives satellite-positioning signals for compatible Motorola mobile radios equipped with GPS capability. It supports applications such as vehicle location reporting, dispatch visibility and fleet management.

Its active antenna design incorporates signal amplification to help provide reliable GPS reception to the connected mobile radio.

Secure Fixed-Mount Installation

The through-hole design allows the PMAN4000A to be securely installed through a suitable vehicle roof or trunk surface. This permanent mounting method is ideal for fleet vehicles where stability, durability and a professional appearance are important.

For optimal reception, install the antenna on a horizontal surface with a clear view of the sky. Professional installation is recommended to ensure correct placement, weather sealing and cable routing.

Radio Compatibility

The PMAN4000A is compatible with select GPS-capable Motorola mobile radios, including appropriately configured models from the following families:

• MOTOTRBO XPR 4000 Series

• MOTOTRBO XPR 5000 Series

• Select DM and DGM Series mobile radios

• Select Motorola APX mobile radios

Compatibility depends on the exact radio model, installed GPS options and antenna connection. The connected radio must support GPS operation and have the appropriate antenna port.

Important Installation Note

The PMAN4000A is a GPS antenna only. It does not replace the VHF, UHF or 700/800/900 MHz antenna required for two-way voice communication.

A separate mobile RF antenna is still required for transmitting and receiving radio communications. Confirm connector compatibility and installation requirements before ordering.

Choosing the Correct GPS Mount

The PMAN4000A provides the most secure permanent installation of Motorola’s standalone GPS antenna options.

• Choose the PMAN4000A for a permanent through-hole installation

• Choose the PMAN4001B for an on-glass window installation

• Choose the PMAN4002A for a removable magnetic installation

Why Choose the Motorola PMAN4000A?

The PMAN4000A combines active GPS reception, 3 dB gain and a secure fixed-mount design for dependable fleet operation. It is an excellent choice for organizations requiring a durable external GPS antenna and a professional permanent vehicle installation.

For assistance confirming radio compatibility or selecting the correct GPS antenna, contact Delmarva Communications before ordering.
