Programming, Test & Alignment Cable – Slim to DB25 & USB Plug

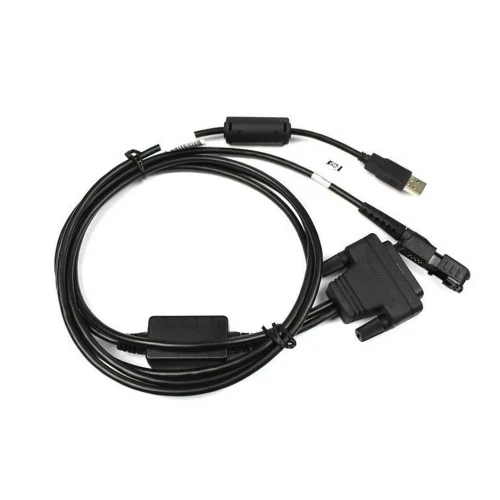

The Motorola PMKN4117B Programming Cable Slim to DB25 & USB Plug is a professional programming, test, and alignment cable designed for compatible Motorola MOTOTRBO portable two-way radios.

Featuring a slim radio connector along with DB25 and USB connectivity, the PMKN4117B provides the interface required for supported radio programming, configuration, testing, alignment, and service procedures.

The cable is designed for use with compatible Motorola MOTOTRBO portable radios including select DP2000 Series, DP3000 Series, and R5 models.

The PMKN4117B is particularly useful for Motorola radio dealers, communications technicians, service centers, fleet administrators, and organizations that need to program or maintain compatible MOTOTRBO portable radio fleets.

Key Features

• Genuine Motorola Solutions accessory

• Programming, test, and alignment cable

• Slim radio connector

• DB25 connection

• USB plug

• Designed for compatible MOTOTRBO portable radios

• Supports radio programming

• Supports radio configuration

• Supports professional test procedures

• Supports radio alignment procedures

• Provides a wired connection for compatible service equipment

• Suitable for radio diagnostics and maintenance

• Designed for professional radio service environments

• Suitable for Motorola dealers and service centers

• Suitable for fleet programming and maintenance

• Provides reliable wired data communication

• Compatible Motorola software may be required

• Additional test equipment may be required for service procedures

• Portable radio sold separately

• Computer and test equipment sold separately

• Genuine Motorola Solutions service accessory

• Motorola part number: PMKN4117B

• Base part number: PMKN4117

Programming Applications

The PMKN4117B can be used to establish a wired connection between compatible Motorola portable radios and appropriate programming equipment.

Supported applications can include:

• Radio programming

• Radio configuration

• Codeplug reading and writing

• Fleet configuration

• Radio maintenance

• Firmware and configuration procedures

• Service operations

The exact functions available depend on the connected radio and Motorola software being used.

Test and Alignment Applications

In addition to programming, Motorola identifies the PMKN4117B as a:

Programming, Test and Alignment Cable

This allows the cable to be incorporated into supported professional radio-service configurations for procedures such as:

• Radio testing

• Radio alignment

• Radio diagnostics

• Troubleshooting

• Performance verification

• Repair verification

• Bench servicing

• Preventive maintenance

Additional service and RF test equipment may be required depending on the procedure being performed.

DB25 and USB Connectivity

The PMKN4117B features:

Slim Connector to DB25 & USB Plug

This configuration provides the physical interfaces required for supported programming and service applications with compatible Motorola portable radios.

The slim connector is designed to provide a secure connection to compatible radio platforms while the DB25 and USB connections support the appropriate programming and service configuration.

Compatible Radios

Documented compatible Motorola radio platforms include select:

• Motorola MOTOTRBO DP2400

• Motorola MOTOTRBO DP2400e

• Motorola MOTOTRBO DP2600

• Motorola MOTOTRBO DP2600e

• Motorola MOTOTRBO DP3441

• Motorola MOTOTRBO DP3441e

• Motorola MOTOTRBO DP3661e

• Motorola MOTOTRBO R5

• Select corresponding regional MOTOTRBO models

Compatibility should always be verified against the exact radio model and service procedure before ordering.

MOTOTRBO R5

Current accessory documentation also identifies the PMKN4117B for compatible:

Motorola MOTOTRBO R5

portable radios.

This makes the cable useful for organizations and service facilities maintaining newer R5 radios alongside compatible earlier-generation MOTOTRBO portable radios.

Professional Service Accessory

The PMKN4117B is particularly appropriate for:

• Motorola radio dealers

• Two-way radio service centers

• Communications technicians

• Fleet administrators

• Radio system managers

• Professional radio installers

• Organizations maintaining their own radio fleets

Its combination of programming and service functionality makes it useful for both fleet configuration and technical radio maintenance.

Software and Equipment Requirements

The PMKN4117B provides the physical connection required for compatible programming and service operations.

Appropriate Motorola programming or service software is required for applicable computer-based functions.

Additional equipment may also be required for test and alignment procedures.

Software, computers, radios, and test equipment are sold separately unless specifically stated otherwise.

Important

The PMKN4117B is a professional programming, test, and alignment cable.

It is not a charging cable.

It is not a standard consumer USB cable.

Compatible Motorola programming or service software may be required.

Additional test equipment may be required for alignment and diagnostic procedures.

Always verify compatibility with the exact radio model and software environment before ordering.

Specifications

Manufacturer: Motorola Solutions
Part Number: PMKN4117B
Base Part Number: PMKN4117
Product Type: Programming, Test and Alignment Cable
Radio Connector: Slim Connector
Interfaces: DB25 / USB
Radio Platform: MOTOTRBO
Programming: Yes
Testing: Yes
Alignment: Yes
Radio Included: No
Computer Included: No
Software Included: No
Test Equipment Included: No
Primary Application: Radio Programming, Testing, Alignment and Service
