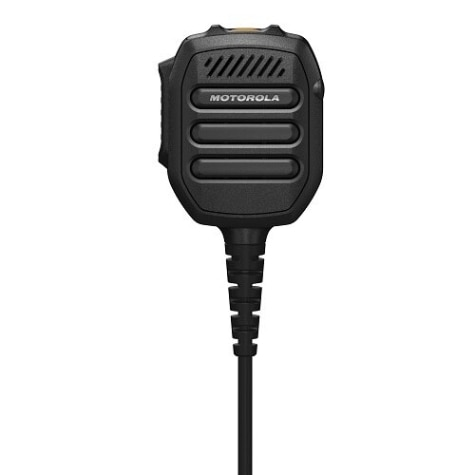

RM530 IMPRES Windporting Remote Speaker Microphone for MOTOTRBO R5

Communicate clearly while keeping your radio securely attached with the Motorola RM530 IMPRES Windporting Remote Speaker Microphone. Designed specifically for the MOTOTRBO R5, this compact speaker microphone provides convenient push-to-talk, transmit and receive functionality from a shoulder, lapel or uniform.

Motorola Windporting technology helps reduce the effects of wind and outdoor weather on transmitted audio. IMPRES audio technology optimizes performance with the connected radio, while the powerful speaker delivers audio at up to 97-phon loudness for clear reception in busy working environments.

The RM530 features Work-When-Wet performance and an IP67-rated microphone head for dependable operation around dust, rain and temporary water exposure. Its compact housing and low-profile swivel clip provide comfortable, unobtrusive placement during active shifts.

A built-in 3.5 mm audio jack supports compatible receive-only earpieces for private listening. This model does not include volume controls, channel controls or programmable buttons.

Package Contents

• Motorola RM530 IMPRES remote speaker microphone

• Attached coiled radio cable

• Low-profile swivel clothing clip

• Protective cover for the 3.5 mm audio jack

Key Features

• Compact remote speaker microphone for the MOTOTRBO R5

• IMPRES audio technology

• Windporting microphone helps reduce wind interference

• Speaker output of up to 97-phon loudness

• Work-When-Wet audio performance

• IP67-rated microphone head for dust and water protection

• Large side push-to-talk button

• Built-in 3.5 mm audio jack for compatible earpieces

• Low-profile swivel clothing clip

• TIA-4950/UL approved for properly configured radio systems

• Genuine Motorola Solutions accessory

• Motorola part number PMMN4171A

Compatibility

Designed and officially supported for:

• Motorola MOTOTRBO R5 Limited-Keypad Radio

• Motorola MOTOTRBO R5 Non-Keypad Radio

The PMMN4171A is optimized specifically for the MOTOTRBO R5 and should not be assumed compatible with older XPR 3000 or XPR 3000e Series radios, even if the accessory connections appear similar.

The integrated 3.5 mm jack supports select compatible Motorola receive-only earpieces. Verify the earpiece connector type before ordering.

TIA-4950/UL approval applies only when the microphone is used as part of a complete Motorola-approved radio, battery and accessory configuration.

Ideal Applications

• Manufacturing and construction

• Utilities and public works

• Transportation and fleet operations

• Warehousing and distribution

• Security and facility management

• Hospitality and event operations

• Outdoor and weather-exposed work environments
