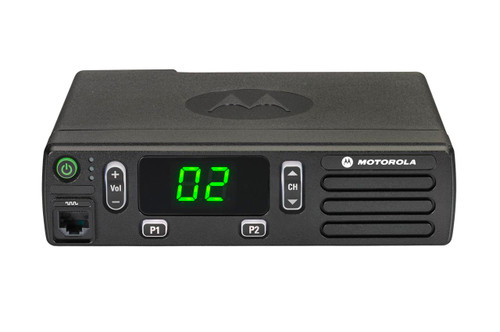

Motorola MOTOTRBO CM200d UHF 25W Digital Mobile Radio

The Motorola MOTOTRBO CM200d AAM01QNC9JA1AN UHF Digital Mobile Two-Way Radio provides reliable analog and digital voice communications for businesses and organizations that need dependable communications from vehicles, offices, dispatch locations, and fixed installations.

Operating across the 403–470 MHz UHF frequency range with up to 25 watts of RF output power, this CM200d configuration delivers reliable communication performance for compatible commercial UHF radio systems.

The AAM01QNC9JA1AN comes with analog and MOTOTRBO DMR digital capability, allowing organizations to operate on existing analog systems while transitioning to digital communications at their own pace.

Digital operation provides access to MOTOTRBO capabilities while maintaining compatibility with supported conventional analog radio systems.

The CM200d features a simple numeric display designed to provide essential channel information without the more advanced alphanumeric interface found on the CM300d.

With 16-channel capacity, programmable controls, voice announcement capability, scanning functions, and support for conventional repeater and talkaround operation, the CM200d provides the essential communications features needed for everyday commercial and professional applications.

Its compact chassis is designed for convenient installation in vehicles and other locations where space may be limited, while an IP54-rated enclosure provides protection against dust and splashing water.

Key Features

• Motorola MOTOTRBO CM200d mobile two-way radio

• Analog and digital operation

• MOTOTRBO DMR digital capable

• UHF frequency band

• 403–470 MHz frequency range

• Up to 25 watts RF output power

• 16-channel capacity

• Numeric display

• Bright LED indicators

• Two programmable buttons

• Voice announcement capability

• Channel scanning

• Priority scanning

• Dual Priority Scan

• Repeater / Talkaround operation

• High / Low power selection

• Nuisance Channel Delete

• Busy Channel Lockout

• VOX capability

• Time-Out Timer

• MDC1200 PTT ID

• Quick Call II support

• DMR digital conventional operation

• Basic Privacy

• Remote Monitor

• Radio Inhibit

• Dual Capacity Direct Mode

• Radio Management compatible

• 4-watt internal speaker

• Compact mobile-radio chassis

• IP54 rated

• Designed for professional and commercial communications

• Suitable for vehicle and fixed-location installations

• Standard microphone included

• Standard mounting bracket included

• Standard DC power cable included

• External UHF antenna required separately

• Motorola model number: AAM01QNC9JA1AN

Frequency Range

The AAM01QNC9JA1AN operates across:

403–470 MHz UHF

This commercial UHF frequency coverage makes the radio suitable for properly licensed systems operating within its supported frequency range.

UHF communications are commonly used in commercial environments such as transportation, construction, manufacturing, hospitality, retail, property management, and other operations requiring dependable mobile communications.

Radio frequencies must be programmed according to the organization's authorized communications system and applicable regulatory requirements.

RF Output Power

This configuration of the CM200d provides:

Up to 25 Watts UHF RF Output

This is the lower-power UHF digital version of the CM200d.

For applications requiring additional RF output, Motorola also offers the 40-watt AAM01QPC9JA1AN UHF digital CM200d.

Analog and Digital Operation

The AAM01QNC9JA1AN supports:

Analog + MOTOTRBO DMR Digital

This allows organizations to continue communicating with compatible existing analog radios while introducing digital MOTOTRBO radios into their fleet.

Organizations can migrate channels and users from analog to digital according to their operational requirements without necessarily replacing their entire radio system at once.

MOTOTRBO Digital

Digital operation provides access to supported MOTOTRBO DMR capabilities.

Depending on system configuration and programming, supported digital features include:

• Digital voice communications

• DMR conventional operation

• Dual Capacity Direct Mode

• Basic Privacy

• Remote Monitor

• Radio Inhibit

• Digital radio identification

• Improved digital voice performance

• Efficient 12.5 kHz channel operation

Feature availability depends on radio programming and system configuration.

16-Channel Capacity

The CM200d supports up to:

16 Channels

This provides straightforward channel access for organizations that need multiple operational channels for different:

• Departments

• Work groups

• Locations

• Repeater systems

• Dispatch operations

• Job functions

• Analog communications

• Digital communications

• Simplex communications

Numeric Display

The CM200d features a:

Numeric Display

The straightforward interface provides essential channel information while helping minimize distractions for vehicle operators.

For organizations requiring a more advanced alphanumeric display and greater channel capacity, the CM300d provides an alternative within the same Motorola CM Series.

Included Accessories

The AAM01QNC9JA1AN configuration is supplied with:

• PMMN4090 – Standard Compact Mobile Microphone

• RLN6469 – Standard Low-Profile Mounting Bracket

• HKN4137 – Standard DC Power Cable

An external UHF antenna and appropriate antenna mounting hardware are required separately.

Installation Applications

The CM200d is well suited for installation in:

• Service vehicles

• Delivery vehicles

• Construction vehicles

• Utility vehicles

• Tow trucks

• Transportation fleets

• School buses

• Maintenance vehicles

• Agricultural equipment

• Dispatch locations

• Security offices

• Fixed communications stations

Its compact chassis allows the radio to be installed in many locations where larger mobile radios may be impractical.

Rugged Construction

The CM200d carries an:

IP54 Rating

This provides protection against limited dust ingress and splashing water from multiple directions.

The rugged construction makes the radio suitable for everyday professional environments where communications equipment may be exposed to vibration, dust, temperature changes, and other demanding conditions.

25W vs. 40W UHF Digital Models

Motorola offers two digital UHF power configurations of the CM200d:

AAM01QNC9JA1AN = UHF 403–470 MHz, 25W, Analog/Digital

AAM01QPC9JA1AN = UHF 403–470 MHz, 40W, Analog/Digital

Both provide 16-channel capacity, numeric displays, and analog/digital operation, but they differ in maximum RF output power.

Digital vs. Analog Model

Do not confuse the AAM01QNC9JA1AN with the extremely similar:

AAM01QNC9JC1AN

The difference is important:

AAM01QNC9JA1AN = UHF 25W Analog/Digital

AAM01QNC9JC1AN = UHF 25W Analog Only

Customers who require MOTOTRBO DMR digital operation should select the AAM01QNC9JA1AN digital-capable model.

CM200d vs. CM300d

The CM200d is designed as the simpler model within the Motorola CM Series.

CM200d = 16 Channels + Numeric Display

CM300d = 99 Channels + Alphanumeric Display

Both platforms are available in multiple VHF and UHF power and operating-mode configurations.

Important

The AAM01QNC9JA1AN is the:

UHF 403–470 MHz / 25W / Analog & Digital CM200d

Radio programming is required before operation.

An appropriate UHF antenna and antenna installation are required and are sold separately.

The radio should be programmed for frequencies and system parameters authorized for the customer's communications system.

Users are responsible for ensuring operation complies with applicable FCC licensing and frequency requirements.

Specifications

Manufacturer: Motorola Solutions
Model: MOTOTRBO CM200d
Model Number: AAM01QNC9JA1AN
Product Type: Mobile Two-Way Radio
Operating Mode: Analog / Digital
Digital Protocol: MOTOTRBO DMR
Band: UHF
Frequency Range: 403–470 MHz
RF Output Power: Up to 25 Watts
Channel Capacity: 16 Channels
Display: Numeric
Programmable Buttons: 2
Speaker Output: 4 Watts
Voice Announcement: Yes
Dual Capacity Direct Mode: Yes
Basic Privacy: Yes
Remote Monitor: Yes
Radio Inhibit: Yes
Radio Management Compatible: Yes
IP Rating: IP54
Dimensions: 1.7 x 6.7 x 5.3 Inches
Standard Microphone: PMMN4090
Standard Mounting Bracket: RLN6469
Standard Power Cable: HKN4137
Antenna Included: No
Primary Application: Commercial UHF Analog and Digital Mobile Communications
