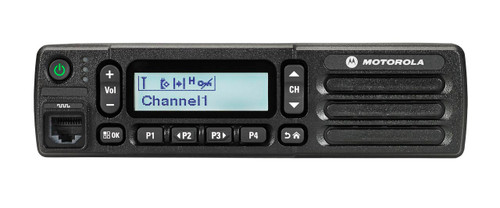

Motorola MOTOTRBO CM300d VHF 25W Digital Mobile Radio – AAM01JNH9JA1AN

The Motorola MOTOTRBO CM300d AAM01JNH9JA1AN VHF Digital Mobile Two-Way Radio provides reliable analog and digital voice communications for businesses and organizations that need dependable communications from vehicles, offices, dispatch locations, and fixed installations.

Operating across the 136–174 MHz VHF frequency range with up to 25 watts of RF output power, this CM300d configuration delivers reliable communication performance for compatible commercial VHF radio systems.

The AAM01JNH9JA1AN comes with analog and MOTOTRBO DMR digital capability, allowing organizations to operate on existing analog systems while transitioning to digital communications at their own pace.

Digital operation provides access to MOTOTRBO capabilities while maintaining compatibility with supported conventional analog radio systems.

The CM300d features a high-contrast alphanumeric display that allows users to easily view information such as channel numbers, contacts, caller identification, and radio status.

With 99-channel capacity, programmable controls, voice announcement capability, scanning functions, and support for conventional repeater and talkaround operation, the CM300d provides the essential communications features needed for everyday commercial and professional applications.

Its compact chassis is designed for convenient installation in vehicles and other locations where space may be limited, while an IP54-rated enclosure provides protection against dust and splashing water.

Key Features

• Motorola MOTOTRBO CM300d mobile two-way radio

• Analog and digital operation

• MOTOTRBO DMR digital capable

• VHF frequency band

• 136–174 MHz frequency range

• Up to 25 watts RF output power

• 99-channel capacity

• High-contrast alphanumeric display

• Displays channel and radio information

• Programmable controls

• Voice announcement capability

• Channel scanning

• Priority scanning

• Repeater / Talkaround operation

• High / Low power selection

• Nuisance Channel Delete

• Busy Channel Lockout

• VOX capability

• Time-Out Timer

• Analog signaling support

• Digital voice communications

• Radio Management compatible

• Compact mobile-radio chassis

• IP54 rated

• Designed for professional and commercial communications

• Suitable for vehicle and fixed-location installations

• Standard microphone included

• Standard mounting bracket included

• Standard DC power cable included

• External VHF antenna required separately

• Motorola model number: AAM01JNH9JA1AN

Frequency Range

The AAM01JNH9JA1AN operates across:

136–174 MHz VHF

This commercial VHF frequency coverage makes the radio suitable for properly licensed systems operating within its supported frequency range.

VHF communications are commonly used in industries such as transportation, agriculture, construction, utilities, public works, and other operations requiring reliable mobile communications.

Radio frequencies must be programmed according to the organization's authorized communications system and applicable regulatory requirements.

RF Output Power

This configuration of the CM300d provides:

Up to 25 Watts VHF RF Output

This is the lower-power VHF digital version of the CM300d.

For applications requiring a higher-power VHF configuration, Motorola also offers the 45-watt AAM01JQH9JA1AN CM300d.

Analog and Digital Operation

The AAM01JNH9JA1AN supports:

Analog + MOTOTRBO DMR Digital

This allows organizations to continue communicating with compatible existing analog radios while introducing digital MOTOTRBO radios into their fleet.

Organizations can migrate channels and users from analog to digital according to their operational requirements without necessarily replacing their entire radio system at once.

MOTOTRBO Digital

Digital operation provides the advantages of Motorola's MOTOTRBO DMR radio platform.

Depending on system configuration and programming, digital operation can provide:

• Digital voice communications

• Improved voice clarity

• Efficient 12.5 kHz channel operation

• Digital radio identification

• Enhanced calling functionality

• Additional MOTOTRBO system capabilities

Feature availability depends on radio programming and system configuration.

99-Channel Capacity

The CM300d supports up to:

99 Channels

This provides flexibility for organizations that need multiple operational channels for different:

• Departments

• Work groups

• Locations

• Repeater systems

• Dispatch operations

• Job functions

• Analog communications

• Digital communications

• Simplex communications

The alphanumeric display helps users identify and navigate programmed channels.

Alphanumeric Display

The CM300d features a:

High-Contrast Alphanumeric Display

The display can provide information such as:

• Channel information

• Caller identification

• Contacts

• Radio status information

This provides a more informative user interface than the simpler numeric display found on the CM200d.

Included Accessories

The AAM01JNH9JA1AN configuration is supplied with:

• PMMN4090 – Standard Compact Mobile Microphone

• RLN6469 – Standard Low-Profile Mounting Bracket

• HKN4137 – Standard DC Power Cable

An external VHF antenna and appropriate antenna mounting hardware are required separately.

Installation Applications

The CM300d is well suited for installation in:

• Service vehicles

• Delivery vehicles

• Construction vehicles

• Utility vehicles

• Tow trucks

• Transportation fleets

• School buses

• Maintenance vehicles

• Agricultural equipment

• Dispatch locations

• Security offices

• Fixed communications stations

Its compact chassis allows the radio to be installed in many locations where larger mobile radios may be impractical.

Rugged Construction

The CM300d carries an:

IP54 Rating

This provides protection against limited dust ingress and splashing water.

The rugged construction makes the radio suitable for everyday professional environments where communications equipment may be exposed to vibration, dust, temperature changes, and other demanding conditions.

25W vs. 45W VHF Digital Models

Motorola offers two digital VHF power configurations of the CM300d:

AAM01JNH9JA1AN = VHF 136–174 MHz, 25W, Analog/Digital

AAM01JQH9JA1AN = VHF 136–174 MHz, 45W, Analog/Digital

Both provide 99-channel capacity, analog and digital operation, and the CM300d alphanumeric display, but they differ in maximum RF output power.

Digital vs. Analog Model

Do not confuse the AAM01JNH9JA1AN with the extremely similar:

AAM01JNH9JC1AN

The difference is important:

AAM01JNH9JA1AN = VHF 25W Analog/Digital

AAM01JNH9JC1AN = VHF 25W Analog Only

Customers who require MOTOTRBO DMR digital operation should select the appropriate digital-capable model.

Important

The AAM01JNH9JA1AN is the:

VHF 136–174 MHz / 25W / Analog & Digital CM300d

Radio programming is required before operation.

An appropriate VHF antenna and antenna installation are required and are sold separately.

The radio should be programmed for frequencies and system parameters authorized for the customer's communications system.

Users are responsible for ensuring operation complies with applicable FCC licensing and frequency requirements.

Specifications

Manufacturer: Motorola Solutions
Model: MOTOTRBO CM300d
Model Number: AAM01JNH9JA1AN
Product Type: Mobile Two-Way Radio
Operating Mode: Analog / Digital
Digital Protocol: MOTOTRBO DMR
Band: VHF
Frequency Range: 136–174 MHz
RF Output Power: Up to 25 Watts
Channel Capacity: 99 Channels
Display: High-Contrast Alphanumeric
Voice Announcement: Yes
Radio Management Compatible: Yes
IP Rating: IP54
Dimensions: 1.7 x 6.7 x 5.3 Inches (44 x 169 x 134 mm)
Weight: Approximately 2.9 lbs (1.3 kg)
Standard Microphone: PMMN4090
Standard Mounting Bracket: RLN6469
Standard Power Cable: HKN4137
Antenna Included: No
Primary Application: Commercial VHF Analog and Digital Mobile Communications
