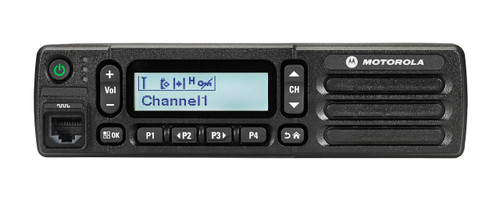

Motorola MOTOTRBO CM300d UHF 40W Analog Mobile Radio – AAM01QPH9JC1AN

The Motorola MOTOTRBO CM300d AAM01QPH9JC1AN UHF Mobile Two-Way Radio is a reliable, cost-effective communications solution designed for businesses and organizations that need dependable analog voice communications from vehicles, offices, dispatch locations, and fixed installations.

Operating across the 403–470 MHz UHF frequency range with up to 40 watts of RF output power, this CM300d configuration provides strong communication performance for compatible commercial UHF radio systems.

The AAM01QPH9JC1AN is configured as an analog-only CM300d, making it an excellent choice for organizations operating existing analog two-way radio systems. The CM300d platform also provides an upgrade path to MOTOTRBO digital operation through the appropriate Motorola software upgrade, allowing organizations to migrate to digital communications when operational requirements change.

The CM300d features a high-contrast alphanumeric display that allows users to easily view information such as channel numbers, contacts, and caller identification.

With 99-channel capacity, programmable buttons, voice announcement capability, scanning functions, and support for conventional repeater and talkaround operation, the CM300d provides the essential communications features needed for everyday commercial and professional applications.

Its compact chassis is designed for convenient installation in vehicles and other locations where space may be limited, while an IP54-rated enclosure provides protection against dust and splashing water.

Key Features

• Motorola MOTOTRBO CM300d mobile two-way radio

• Analog-only configuration

• Software upgradeable to MOTOTRBO digital operation

• UHF frequency band

• 403–470 MHz frequency range

• Up to 40 watts RF output power

• 99-channel capacity

• High-contrast alphanumeric display

• Displays channel and radio information

• Four programmable buttons

• Voice announcement capability

• Channel scanning

• Priority scanning

• Repeater / Talkaround operation

• High / Low power selection

• Nuisance Channel Delete

• Busy Channel Lockout

• VOX capability

• Time-Out Timer

• MDC1200 PTT ID encode capability

• Quick Call II support

• Radio Management compatible

• Compact mobile-radio chassis

• IP54 rated

• Designed for professional and commercial communications

• Suitable for vehicle and fixed-location installations

• Standard microphone included

• Standard mounting bracket included

• Standard DC power cable included

• Motorola model number: AAM01QPH9JC1AN

Frequency Range

The AAM01QPH9JC1AN operates across:

403–470 MHz UHF

This broad commercial UHF frequency coverage makes the radio suitable for properly licensed systems operating within its supported frequency range.

Radio frequencies must be programmed according to the organization's authorized communications system and applicable regulatory requirements.

RF Output Power

This configuration of the CM300d provides:

1–40 Watts UHF RF Output

The radio can be programmed for appropriate power levels depending on the communications system and operating requirements.

Higher RF output can be useful for mobile applications where greater communication coverage is required.

Analog Configuration

The AAM01QPH9JC1AN is supplied as an:

Analog-Only CM300d

This makes it suitable for organizations operating conventional analog UHF radio systems.

The CM300d platform was designed to provide an economical migration path from analog to digital communications.

When required, compatible analog-only CM300d radios can be upgraded to support MOTOTRBO digital functionality using the appropriate Motorola software upgrade.

99-Channel Capacity

The CM300d supports up to:

99 Channels

This provides flexibility for organizations that need multiple operational channels for different:

• Departments

• Work groups

• Locations

• Repeater systems

• Dispatch operations

• Job functions

• Simplex communications

The alphanumeric display helps users identify and navigate programmed channels.

Alphanumeric Display

Unlike the CM200d, which uses a simpler numeric display, the CM300d features a:

High-Contrast Alphanumeric Display

The display can provide information such as:

• Channel information

• Caller identification

• Contacts

• Radio status information

This makes the CM300d particularly useful for organizations that need more information displayed directly on the mobile radio.

Included Accessories

The AAM01QPH9JC1AN configuration is typically supplied with:

• PMMN4090 – Standard Mobile Microphone

• RLN6469 – Standard Low-Profile Mounting Bracket

• HKN4137 – Standard DC Power Cable

• User / safety documentation

An external UHF antenna and antenna mounting hardware are typically required separately for vehicle or fixed installations.

Installation Applications

The CM300d is well suited for installation in:

• Service vehicles

• Delivery vehicles

• Construction vehicles

• Utility vehicles

• Tow trucks

• Transportation fleets

• School buses

• Maintenance vehicles

• Agricultural equipment

• Dispatch locations

• Security offices

• Fixed communications stations

Its compact chassis allows the radio to be installed in many locations where larger mobile radios may be impractical.

Rugged Construction

The CM300d carries an:

IP54 Rating

This provides protection against limited dust ingress and splashing water from multiple directions.

Motorola also specifies the CM Series as meeting applicable MIL-STD-810 C, D, E, F, and G environmental testing standards.

These characteristics make the radio suitable for everyday professional environments where communications equipment may be exposed to vibration, dust, temperature changes, and other demanding conditions.

CM300d vs. CM200d

The CM300d provides a more advanced user interface than the CM200d.

CM300d = Alphanumeric Display

CM200d = Numeric Display

The CM300d's display can provide additional information such as caller identification, channel information, and contacts.

Important

The AAM01QPH9JC1AN is the:

UHF 403–470 MHz / 40W / Analog-Only CM300d

Do not confuse it with the extremely similar:

AAM01QPH9JA1AN

The AAM01QPH9JA1AN is supplied with analog and MOTOTRBO digital capability, while AAM01QPH9JC1AN is the analog-only configuration.

The analog-only CM300d can be upgraded to digital functionality with the appropriate Motorola software upgrade.

Radio programming is required before operation.

An appropriate UHF antenna and antenna installation may be required separately.

Users are responsible for ensuring operation complies with applicable FCC licensing and frequency requirements.

Specifications

Manufacturer: Motorola Solutions
Model: MOTOTRBO CM300d
Model Number: AAM01QPH9JC1AN
Product Type: Mobile Two-Way Radio
Operating Mode: Analog
Digital Upgradeable: Yes
Band: UHF
Frequency Range: 403–470 MHz
RF Output Power: 1–40 Watts
Channel Capacity: 99 Channels
Display: High-Contrast Alphanumeric
Programmable Buttons: 4
Channel Spacing: 12.5 / 25 kHz
Voice Announcement: Yes
Transmit Interrupt: Decode Only
Radio Management Compatible: Yes
IP Rating: IP54
Dimensions: 1.7 x 6.7 x 5.3 Inches (44 x 169 x 134 mm)
Weight: Approximately 2.9 lbs (1.3 kg)
Standard Microphone: PMMN4090
Standard Mounting Bracket: RLN6469
Standard Power Cable: HKN4137
Primary Application: Commercial UHF Mobile Communications
