Operations Critical Bluetooth Wireless Speaker Microphone Kit with Dual-Unit Charger

The Motorola RLN6562B Operations Critical Wireless Remote Speaker Microphone Kit provides cable-free push-to-talk communication for professionals using compatible Bluetooth-enabled Motorola radios. By eliminating the cable between the radio and speaker microphone, it improves mobility, reduces snag hazards, and allows the radio to remain secured on a belt, vest, or carrying case.

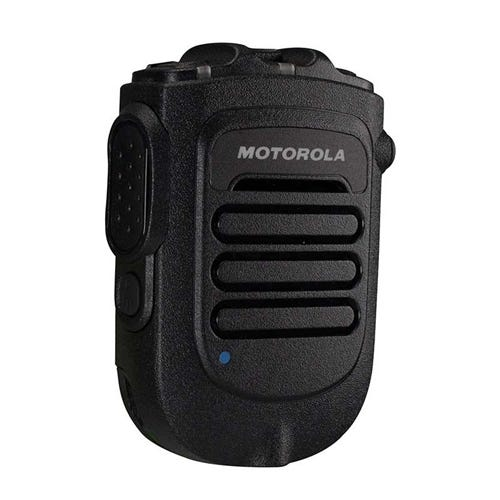

The included PMMN4096 wireless speaker microphone provides enhanced pairing and fast push-to-talk performance within a typical range of up to 10 meters or 33 feet from the connected radio. Large, recessed PTT and emergency buttons remain easy to operate while helping reduce accidental activation.

Additional controls include on-microphone volume adjustment, a built-in task light for low-light work, and a 3.5 mm audio jack for a compatible receive-only earpiece. The included NNTN4990 swivel clip with D-ring allows the microphone to be positioned securely on a uniform, lapel, vest, or equipment strap.

The removable PMNN4461 lithium-ion battery provides up to approximately 28 hours of operation under a standard 5/5/90 duty cycle or approximately 13 hours under a heavier 5/35/60 duty cycle. The included PMLN7120 dual-unit desktop charger can charge the wireless microphone and a separately available spare battery simultaneously, helping support continuous multi-shift operation.

With an IP54-rated design, Windporting audio, and wireless freedom, the RLN6562B is an excellent communication solution for security, utilities, hospitality, property management, transportation, and other active professional environments.

Package Contents

• PMMN4096 Operations Critical Wireless Remote Speaker Microphone

• PMNN4461 removable 1800 mAh lithium-ion battery

• NNTN4990 rotating belt clip with D-ring

• PMLN7120 dual-unit desktop charger

• Charger power supply

Key Features

• Bluetooth wireless remote speaker microphone

• Eliminates the cable between the radio and microphone

• Wireless range of up to approximately 10 meters or 33 feet

• Enhanced pairing and fast push-to-talk performance

• Large recessed push-to-talk button

• Recessed emergency button

• On-microphone volume controls

• Built-in task light

• 3.5 mm receive-only earpiece jack

• Windporting microphone technology

• IP54 environmental protection

• Removable 1800 mAh lithium-ion battery

• Up to approximately 28 hours of standard-duty operation

• Rotating clip with D-ring

• Dual-unit charger supports the microphone and a spare battery

• Genuine Motorola Solutions accessory kit

• Motorola part number RLN6562B

• Replaces RLN6562A

Compatibility

Compatible with select Bluetooth-enabled Motorola MOTOTRBO portable radios, including:

• MOTOTRBO R5

• XPR 7350 and XPR 7350e

• XPR 7380 and XPR 7380e

• XPR 7550 and XPR 7550e

• XPR 7580 and XPR 7580e

• Select XPR 7000 and XPR 7000e Series radios with Bluetooth enabled

Some additional Motorola radios and WAVE-based devices may be supported depending on their Bluetooth hardware, software, firmware, and programming.

This is an Operations Critical wireless accessory and should not be confused with Motorola Mission Critical Wireless RSM kits for APX radios. Always confirm the radio’s Bluetooth capability and wireless-accessory support before ordering.

Compatible Receive-Only Earpieces

The microphone’s 3.5 mm audio jack supports select receive-only earpieces, including:

• Motorola PMLN7560A translucent-tube earpiece

• Motorola AARLN4885 or RLN4885 covered earbud

• Other approved Motorola receive-only earpieces with the appropriate 3.5 mm connector

Ideal Applications

• Security operations

• Utilities and field-service teams

• Hotels and hospitality operations

• Property management

• Transportation and logistics

• Warehouses and distribution centers

• Manufacturing facilities

• Event management

• Mobile professional workforces
